官方地址
http://docs.oasis-open.org/tosca/TOSCA-Simple-Profile-YAML/v1.0/csprd02/TOSCA-Simple-Profile-YAML-v1.0-csprd02.pdf
TOSCA Topology Orchestration Specification for Cloud Application
核心概念
- node 节点
- relationship 关系
实现
- TOSCA YAML service template： 模板
- TOSCA processor： 处理器
- TOSCA orchestrator（orchestration engine）： 编排器
- TOSCA generator: 生成器，用于生成service template
- TOSCA archive： 存档包
- TOSCA Cloud Service Archive （CSAR）
术语表
- Instance Mode：运行的Service Template实例
- Node Template：Topology Template的一部分
- Relationship Template： 在Topology Template中各node之间的关系
- Service Template： 用来指定Topology和服务的编排（orchestration)
- Topology Model: 语义同于Topology Tmeplate
- Topology Template: 用于在Service Template中定义了service的结构，包含Node Template和Relationship Template的集合。
实例一：
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
node_templates:
my_server:
type: tosca.nodes.Compute
capabilities:
# Host container properties
host:
properties:
num_cpus: 1
disk_size: 10 GB
mem_size: 4096 MB
# Guest Operating System properties
os:
properties:
# host Operating System image properties
architecture: x86_64
type: linux
distribution: rhel

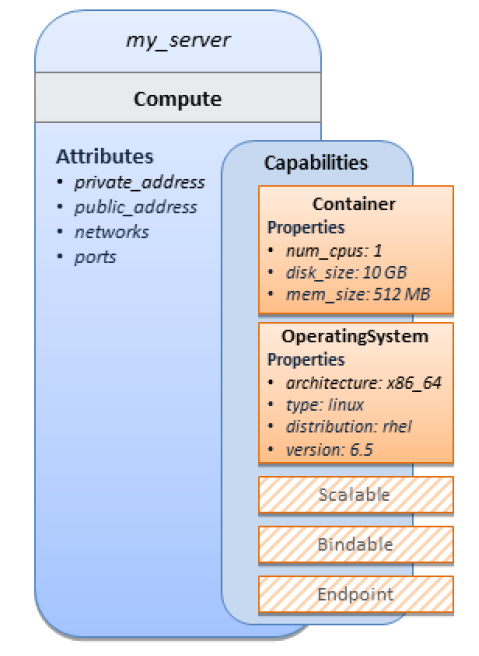

version: 6.5上述模板逻辑结构
实例二：输入、输出
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
cpus:
type: integer
description: Number of CPUs for the server.
constraints:
- valid_values: [ 1, 2, 4, 8 ]
node_templates:
my_server:
type: tosca.nodes.Compute
capabilities:
# Host container properties
host:
properties:
# Compute properties
num_cpus: { get_input: cpus }
mem_size: 2048 MB
disk_size: 10 GB
outputs:
server_ip:
description: The private IP address of the provisioned server.
value: { get_attribute: [ my_server, private_address ] }实例三：软件安装
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
# omitted here for brevity【简洁】
node_templates:
mysql:
type: tosca.nodes.DBMS.MySQL
properties:
root_password: { get_input: my_mysql_rootpw }
port: { get_input: my_mysql_port }
requirements:
- host: db_server
db_server:
type: tosca.nodes.Compute
capabilities:

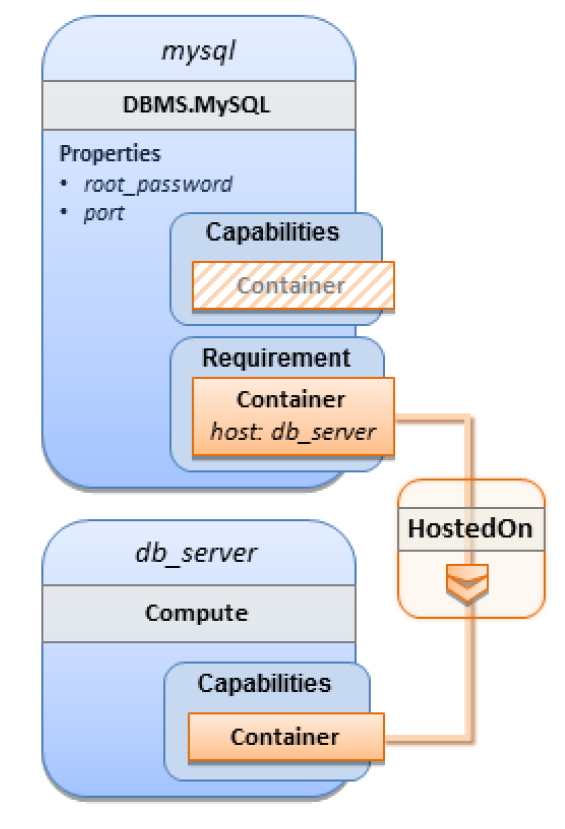

# omitted here for brevity上述模板逻辑结构
实例四：重写操作
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
# omitted here for brevity
node_templates:
mysql:
type: tosca.nodes.DBMS.MySQL
properties:
root_password: { get_input: my_mysql_rootpw }
port: { get_input: my_mysql_port }
requirements:
- host: db_server
interfaces:
Standard:
configure: scripts/my_own_configure.sh
db_server:
type: tosca.nodes.Compute
capabilities:
# omitted here for brevityStandard 生命周期
scripts/my_own_configure.sh 为模板文件的相对路径
实例五：数据库内容部署
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
# omitted here for brevity
node_templates:
my_db:
type: tosca.nodes.Database.MySQL
properties:
name: { get_input: database_name }
user: { get_input: database_user }
password: { get_input: database_password }
port: { get_input: database_port }
artifacts:
db_content:
file: files/my_db_content.txt
type: tosca.artifacts.File
requirements:
- host: mysql
interfaces:
Standard:
create:
implementation: db_create.sh
inputs:
# Copy DB file artifact to server’s staging area
db_data: { get_artifact: [ SELF, db_content ] }
mysql:
type: tosca.nodes.DBMS.MySQL
properties:
root_password: { get_input: mysql_rootpw }
port: { get_input: mysql_port }
requirements:
- host: db_server
db_server:
type: tosca.nodes.Compute
capabilities:

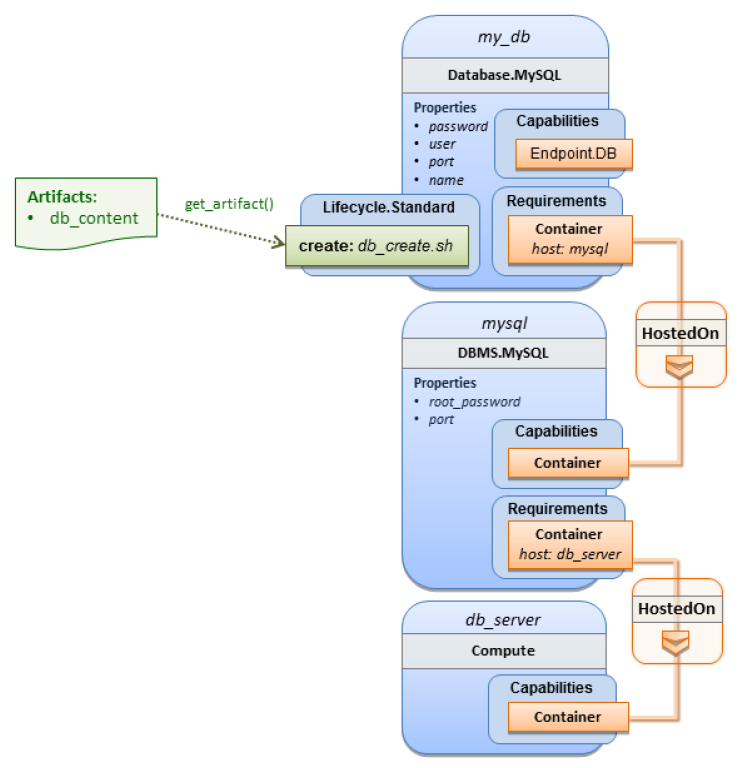

# omitted here for brevity上述模板逻辑结构
实例六：两层应用
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
# Admin user name and password to use with the WordPress application
wp_admin_username:
type: string
wp_admin_password:
type: string
wp_db_name:
type: string
wp_db_user:
type: string
wp_db_password:
type: string
wp_db_port:
type: integer
mysql_root_password:
type: string
mysql_port:
type: integer
context_root:
type: string
node_templates:
wordpress:
type: tosca.nodes.WebApplication.WordPress
properties:
context_root: { get_input: context_root }
admin_user: { get_input: wp_admin_username }
admin_password: { get_input: wp_admin_password }
db_host: { get_attribute: [ db_server, private_address ] }
requirements:
- host: apache
- database_endpoint: wordpress_db
interfaces:
Standard:
inputs:
db_host: { get_attribute: [ db_server, private_address ] }
db_port: { get_property: [ wordpress_db, port ] }
db_name: { get_property: [ wordpress_db, name ] }
db_user: { get_property: [ wordpress_db, user ] }
db_password: { get_property: [ wordpress_db, password ] }
apache:
type: tosca.nodes.WebServer.Apache
properties:
# omitted here for brevity
requirements:
- host: web_server
web_server:
type: tosca.nodes.Compute
capabilities:
# omitted here for brevity
wordpress_db:
type: tosca.nodes.Database.MySQL
properties:
name: { get_input: wp_db_name }
user: { get_input: wp_db_user }
password: { get_input: wp_db_password }
port: { get_input: wp_db_port }
requirements:
- host: mysql
mysql:
type: tosca.nodes.DBMS.MySQL
properties:
root_password: { get_input: mysql_root_password }
port: { get_input: mysql_port }
requirements:
- host: db_server
db_server:
type: tosca.nodes.Compute
capabilities:
# omitted here for brevity实例六：自定义脚本建立模板关系
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template for deploying a single server with predefined properties.
topology_template:
inputs:
# omitted here for brevity
node_templates:
wordpress:
type: tosca.nodes.WebApplication.WordPress
properties:
# omitted here for brevity
requirements:
- host: apache
- database_endpoint:
node: wordpress_db
relationship: my_custom_database_connection
wordpress_db:
type: tosca.nodes.Database.MySQL
properties:
# omitted here for the brevity
requirements:
- host: mysql
relationship_templates:
my_custom_database_connection:
type: ConnectsTo
interfaces:
Configure:
pre_configure_source: scripts/wp_db_configure.sh
# other resources not shown for this example ...实例七：自定义关系类型
tosca_definitions_version: tosca_simple_yaml_1_0
description: Definition of custom WordpressDbConnection relationship type
relationship_types:
my.types.WordpressDbConnection:
derived_from: tosca.relationships.ConnectsTo
interfaces:
Configure:
pre_configure_source: scripts/wp_db_configure.sh实例八：在模板中定义节点依赖
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template with a generic dependency between two nodes.
topology_template:
inputs:
# omitted here for brevity
node_templates:
my_app:
type: my.types.MyApplication
properties:
# omitted here for brevity
requirements:
- dependency: some_service
some_service:
type: some.nodetype.SomeService
properties:
# omitted here for brevity实例八：为软件定义主机基础设施要求的节点过滤
tosca_definitions_version: tosca_simple_yaml_1_0
description: Template with requirements against hosting infrastructure.
topology_template:
inputs:
# omitted here for brevity
node_templates:
mysql:
type: tosca.nodes.DBMS.MySQL
properties:
# omitted here for brevity
requirements:
- host:
node_filter:
capabilities:
# Constraints for selecting “host” (Container Capability)
- host:
properties:
- num_cpus: { in_range: [ 1, 4 ] }
- mem_size: { greater_or_equal: 2 GB }
# Constraints for selecting “os” (OperatingSystem Capability)
- os:
properties:
- architecture: { equal: x86_64 }
- type: linux
- distribution: ubuntu
