2014-03-01

Python WSGI

  • 子曰:闻之我也野,视之我也饶,行之我也明
  • 听到的,容易忘记,看到的,我会记得,但只有自己做了,我才会理解
  • WSGI 解耦Web服务器和Web框架

WSGI服务器示例

# Tested with Python 2.7.9, Linux & Mac OS X
import socket
import StringIO
import sys


class WSGIServer(object):

    address_family = socket.AF_INET
    socket_type = socket.SOCK_STREAM
    request_queue_size = 1

    def __init__(self, server_address):
        # Create a listening socket
        self.listen_socket = listen_socket = socket.socket(
            self.address_family,
            self.socket_type
        )
        # Allow to reuse the same address
        listen_socket.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
        # Bind
        listen_socket.bind(server_address)
        # Activate
        listen_socket.listen(self.request_queue_size)
        # Get server host name and port
        host, port = self.listen_socket.getsockname()[:2]
        self.server_name = socket.getfqdn(host)
        self.server_port = port
        # Return headers set by Web framework/Web application
        self.headers_set = []

    def set_app(self, application):
        self.application = application

    def serve_forever(self):
        listen_socket = self.listen_socket
        while True:
            # New client connection
            self.client_connection, client_address = listen_socket.accept()
            # Handle one request and close the client connection. Then
            # loop over to wait for another client connection
            self.handle_one_request()

    def handle_one_request(self):
        self.request_data = request_data = self.client_connection.recv(1024)
        # Print formatted request data a la 'curl -v'
        print(''.join(
            '< {line}\n'.format(line=line)
            for line in request_data.splitlines()
        ))

        self.parse_request(request_data)

        # Construct environment dictionary using request data
        env = self.get_environ()

        # It's time to call our application callable and get
        # back a result that will become HTTP response body
        result = self.application(env, self.start_response)

        # Construct a response and send it back to the client
        self.finish_response(result)

    def parse_request(self, text):
        request_line = text.splitlines()[0]
        request_line = request_line.rstrip('\r\n')
        # Break down the request line into components
        (self.request_method,  # GET
         self.path,            # /hello
         self.request_version  # HTTP/1.1
         ) = request_line.split()

    def get_environ(self):
        env = {}
        # The following code snippet does not follow PEP8 conventions
        # but it's formatted the way it is for demonstration purposes
        # to emphasize the required variables and their values
        #
        # Required WSGI variables
        env['wsgi.version']      = (1, 0)
        env['wsgi.url_scheme']   = 'http'
        env['wsgi.input']        = StringIO.StringIO(self.request_data)
        env['wsgi.errors']       = sys.stderr
        env['wsgi.multithread']  = False
        env['wsgi.multiprocess'] = False
        env['wsgi.run_once']     = False
        # Required CGI variables
        env['REQUEST_METHOD']    = self.request_method    # GET
        env['PATH_INFO']         = self.path              # /hello
        env['SERVER_NAME']       = self.server_name       # localhost
        env['SERVER_PORT']       = str(self.server_port)  # 8888
        return env

    def start_response(self, status, response_headers, exc_info=None):
        # Add necessary server headers
        server_headers = [
            ('Date', 'Tue, 31 Mar 2015 12:54:48 GMT'),
            ('Server', 'WSGIServer 0.2'),
        ]
        self.headers_set = [status, response_headers + server_headers]
        # To adhere to WSGI specification the start_response must return
        # a 'write' callable. We simplicity's sake we'll ignore that detail
        # for now.
        # return self.finish_response

    def finish_response(self, result):
        try:
            status, response_headers = self.headers_set
            response = 'HTTP/1.1 {status}\r\n'.format(status=status)
            for header in response_headers:
                response += '{0}: {1}\r\n'.format(*header)
            response += '\r\n'
            for data in result:
                response += data
            # Print formatted response data a la 'curl -v'
            print(''.join(
                '> {line}\n'.format(line=line)
                for line in response.splitlines()
            ))
            self.client_connection.sendall(response)
        finally:
            self.client_connection.close()


SERVER_ADDRESS = (HOST, PORT) = '', 8888


def make_server(server_address, application):
    server = WSGIServer(server_address)
    server.set_app(application)
    return server


if __name__ == '__main__':
    if len(sys.argv) < 2:
        sys.exit('Provide a WSGI application object as module:callable')
    app_path = sys.argv[1]
    module, application = app_path.split(':')
    module = __import__(module)
    application = getattr(module, application)
    httpd = make_server(SERVER_ADDRESS, application)
    print('WSGIServer: Serving HTTP on port {port} ...\n'.format(port=PORT))
    httpd.serve_forever()

Python WSGI框架

#应用一
from pyramid.config import Configurator
from pyramid.response import Response


def hello_world(request):
    return Response(
        'Hello world from Pyramid!\n',
        content_type='text/plain',
    )

config = Configurator()
config.add_route('hello', '/hello')
config.add_view(hello_world, route_name='hello')
app = config.make_wsgi_app()

#应用二
from flask import Flask
from flask import Response
flask_app = Flask('flaskapp')


@flask_app.route('/hello')
def hello_world():
    return Response(
        'Hello world from Flask!\n',
        mimetype='text/plain'
    )

app = flask_app.wsgi_app

#应用三
import sys
sys.path.insert(0, './helloworld')
from helloworld import wsgi

app = wsgi.application

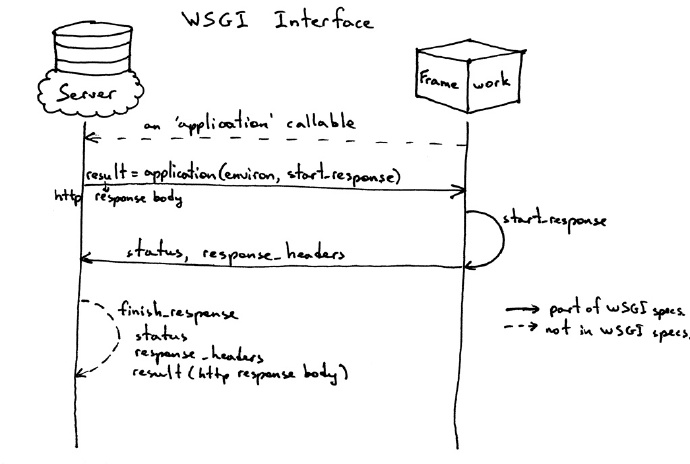

实现机制

  • 1.框架提供一个可调用的‘应用’
  • 2.服务器接收HTTP客户端请求,执行可调用的‘应用’。服务器把包含WSGI/CGI变量的字典和可调用 的‘start_response’作为参数给可调用的应用
  • 3.框架/应用生成HTTP状态和HTTP响应头,然后把它们传给可调用的‘start_response’
  • 4.服务器把状态、响应头、响应体合并到HTTP响应里,传给HTTP客户端 WSGI

自定义WSGI WEB应用/WEBk框架

#vim wsgiapp.py
def app(environ, start_response):
    """A barebones WSGI application.

    This is a starting point for your own Web framework :)
    """
    status = '200 OK'
    response_headers = [('Content-Type', 'text/plain')]
    start_response(status, response_headers)
    return ['Hello world from a simple WSGI application!\n']

处理流程

WSGI server
