2017-01-23

版权声明:本文为博主原创文章,转载注明“龙棠博客”字样和原文链接。

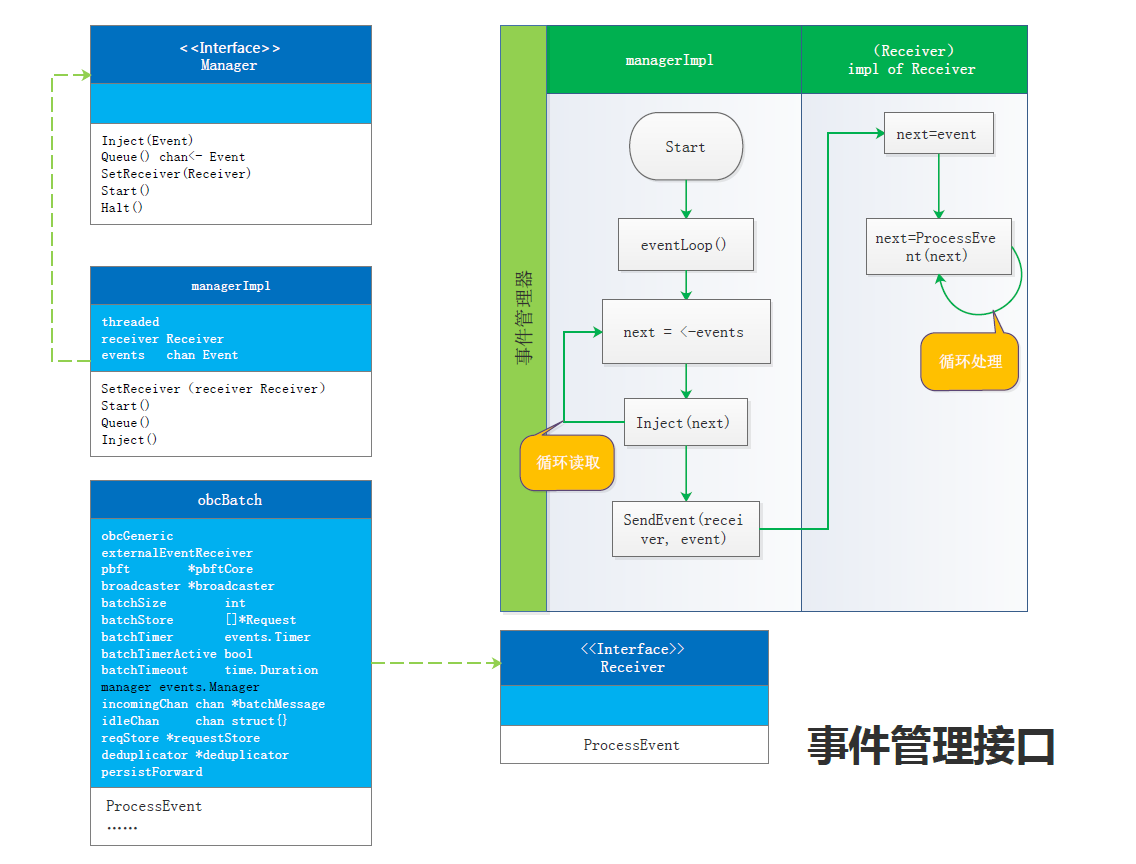

事件管理交互图V0.6.1

PBFT

Fabric多处用了事件管理

  • coordinatorImpl
// 实现了Executor接口
type coordinatorImpl struct {
	manager         events.Manager              // Maintains event thread and sends events to the coordinator
	rawExecutor     PartialStack                // Does the real interaction with the ledger
	consumer        consensus.ExecutionConsumer // The consumer of this coordinator which receives the callbacks
	stc             statetransfer.Coordinator   // State transfer instance
	batchInProgress bool                        // Are we mid execution batch
	skipInProgress  bool                        // Are we mid state transfer
}
  • obcBatch
type obcBatch struct {
	obcGeneric  // 基础公共
	externalEventReceiver
	pbft        *pbftCore
	broadcaster *broadcaster

	batchSize        int
	batchStore       []*Request
	batchTimer       events.Timer
	batchTimerActive bool
	batchTimeout     time.Duration

	manager events.Manager // TODO, remove eventually, the event manager

	incomingChan chan *batchMessage // Queues messages for processing by main thread
	idleChan     chan struct{}      // Idle channel, to be removed

	// 存储未解决,行将发生的请求
	reqStore *requestStore // Holds the outstanding and pending requests

	deduplicator *deduplicator

	persistForward
}
